IEETek P3200 Portable Power Station

Product detailed description

IEETek P3200 Portable Power Station / Solar Generator

• Massive capacity of 2048Wh.
• 100% recharge in about 1.5 hours for super-fast recharging.
• LiFePO4 battery for enhanced safety.
• Seamless EPS with 10ms switching time for uninterrupted power supply and superior BMS protection for safety.
• 3200W AC output (6400W surge) for running various devices.
• Versatile output ports to supply 16 devices simultaneously.

Real Fast Charge
IEETek’s Maxi-Charge Technology, featured in the P3200, uses a bi-directional inverter to enable rapid 1800W charging via AC power, fully recharging in approximately 1.5 hours.

Sine Wave AC Output
IEETek’s advanced inverter technology in the P3200 achieves a THD rate of less than 1.5% at full load, outperforming the 5% THD typically offered by other solar inverter manufacturers. The P3200 solar generator delivers AC electricity with a waveform nearly identical to a pure sine wave, ensuring minimal interference with sensitive devices like oscilloscopes thanks to its low THD.

SmartDrive Technology
The IEETek P3200 portable power station provides a nominal AC output of 3200W and can handle surges up to 6400W. Equipped with SmartDrive technology, it automatically adjusts when connected appliances exceed 3200W, ensuring safe, efficient, and reliable power delivery without compromising performance.

Multiple BMS Protections
The IEETek P3200 portable power station is a leader in its class, featuring advanced BMS protections for enhanced safety. Powered by a dual-core processor, the P3200 solar generator delivers robust computing performance for efficient multitasking while ensuring reliable, all-round protection.

LiFePO4 Battery Cells
The IEETek P3200 portable power station is equipped with a durable LiFePO4 battery designed for longevity. Even after 4,000 cycles, it retains 80% of its usable capacity, providing dependable backup power during home outages. LiFePO4 batteries also offer enhanced safety, with a significantly lower risk of fire or explosion due to mechanical damage or overheating.

MPPT Efficiency Over 99.9%
The P3200 solar generator features IEETek’s Enhanced Dynamic MPPT algorithm, delivering an impressive MPPT efficiency of over 99.9%. Its dynamic voltage tracking ensures the PV charger consistently operates at the true maximum power point, adapting seamlessly to changing solar radiation throughout the day. This makes it an ideal choice for reliable home backup power.

Emergencies Power Supply
The IEETek P3200 portable power station features a EPS function that seamlessly switches to backup power within 10 milliseconds when connected between the grid and your devices. It can be charged using grid power, with the charging circuit automatically shutting off once the battery is fully charged.

Versatile Output
The IEETek P3200 solar generator offers 16 output ports across 5 different types, enabling you to charge up to 16 devices simultaneously.

Power & Light Anywhere
Equipped with an always-charged flashlight and a 4-in-1 charging cable, ideal for keeping your mobile devices powered and illuminating during outdoor adventures, camping, and emergencies.

Power Self-sufficiency
The IEETek P3200 solar energy generator offers a sustainable and reliable solution. Just connect the P3200 portable power station to the IEETek SP400 foldable solar panels to generate your own solar power and break free from the grid.

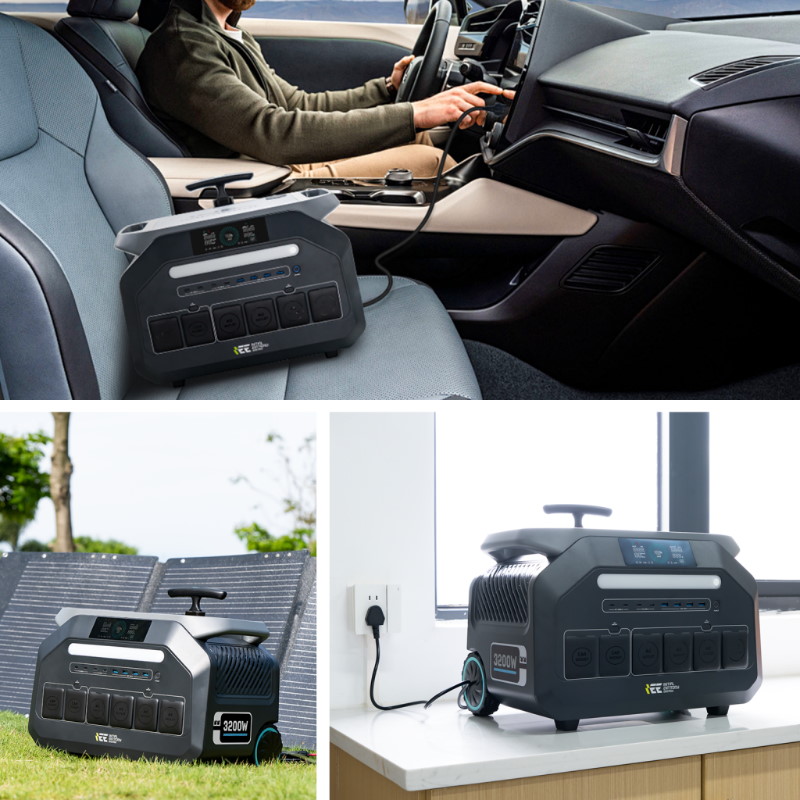

Three Ways to Charge the IEETek P3200 Quickly

1. Wall Charging. The P3200 can be fully recharged from 0% to 100% in just 1.5 hours using the included cable and a standard wall outlet.
2. Solar Charging. The P3200 can be recharged using a compatible solar panel with a maximum input of 1000W. Charging time varies based on the solar irradiance. With a built-in MPPT controller, the P3200 solar generator achieves exceptional efficiency, exceeding 99.9%.
3. Car Charging. The P3200 can be recharged from your car by simply plugging it into the car’s port.

Applications

Specifications

Battery Input
Cell Type: LiFePO4
Battery Capacity: 2048 Wh
Nominal Battery Voltage: 51.2 V
Battery Input Voltage Range: 40–60 V
Nominal Recharge Current: 50 A
Nominal Discharge Current: 70 A
Max. Discharge Current: 90 A
Cycle Life (25°C, 0.5C Discharge, 80% DOD): 4000+
AC Input
Mains Charging Power: 1800 W
Nominal Voltage (AC): 220 V / 230 V / 240 V
Voltage Range (AC): 180–260 V
Nominal Frequency: 50 Hz
Frequency Range: 45–55 Hz
Power Factor: 0.99
DC Input
Max. Car charging power: 120 W
Maximum solar charging power: 1000 W
DC input voltage range: 12–60 V
Maximum DC/PV input current: 20 A
AC output
Nominal AC power: 3200 W
Peak power: 6400 W
Nominal AC line voltage: 220 V / 230 V / 240 V
Nominal line frequency: 50 Hz
Max. AC Current: 14.5 A / 13.9 A / 13.3 A
THDv at rated power: < 1.5%
DC Output
Type-C1 / Type-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
Type-C1 and Type-C2 (simultaneously): Two ports fixed at 5V⎓3A
Type-C3 / Type-C4: 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A
USB-A1 / USB-A2 / USB-A4: 5V⎓3A, 9V⎓3A, 12V⎓3A
Type-C3 and USB-A2 (simultaneously): Two ports fixed 5V⎓3A
Type-C4 and USB-A1 (simultaneously): Two ports fixed 5V⎓3A
USB-A3 and USB-A2 (simultaneously): Two ports fixed 5V⎓3A
Total max. Output power of the car and DC 5525 ports: 132W
Car port (×1): 13.2V⎓10A
DC 5525 port (×2): 13.2V⎓8A
Efficiency
Battery to AC (max): 94%
AC to battery (max): 94%
Protection
AC output protection: overcurrent, short circuit, over/underfrequency, overheating
AC charging protection: over/undervoltage
Battery protection: overheating, overvoltage, undervoltage
General data
Dimensions (W×H×D): 445×298×371 mm
Weight: 24.35 kg
Cooling type: Forced air
Operating temperature range: 0 ~ 40°C (charging), -15 ~ 40°C (discharging)
Operating relative humidity: 0–95%, non-condensing
Protection class: IP20
Noise level: < 65 dB
Communication interface: Wi-Fi/Bluetooth
LED backlight: 3 W

In the box

IEETek P3200 Portable Power Station
AC charging cable
Car charging cable
Solar panel charging cable
4-in-1 charging cable
User manual
